- Type of Protection: Flameproof (Explosion proof) Ex-d or Increased Safety Ex-e,
- Area Classification: Zone 1 & 2 or Zone 2,
- Gas Groups: I, IIA, IIB and IIC (Please refer detailed product specification),
- IP Protection: Minimum IP 55 or IP 65/66,
- Apparatus standard: For Ex-d - IS 2148/1981 and Ex-e IS 6381/1972 & IS 8224/1976 (Recertification based on IEC 60079 series is under process),
- Material: Cast Aluminium Alloy LM-6,
|
- Finish: Corrosion Resistant Epoxy paint Shade 631 of IS 5,
- Glass: Heat and Impact Resistance and Toughened Glass TYPE "A". Make - Dome Glass for Well glass fitting - BOROSIL,
- Wire Guard: Mild Steel Plated & Powder Coated of 3 or 5 mm Dia,
- Gasket: Endless Neoprene minimum 3 mm dia.
- Hardware: All flame path - SS Allen Bolt or Threaded. All other SS,
- Reflector: Alluminium Anodized,
|
- Mounting: Different for different type of fitting,
- Voltage: 230V 50 Hz AC,
- Lamp Holder: Based on Lamp Type like 2Pin / 3Pin / ES27 / ES40 / Bi pin or suitable for various PLL / CFL lamp, Cable Entry Size / No.: 3/4" BSCon. / 2,
- Earthing: External 2 Nos. of size M6 & Internal 1 No. of size M6, Wire Size: As per lamp rating minimum 1.5 sq. mm. Cu flexible Fiber Glass Insulated,
- Accessories: (OPTIONAL) Lamp, Cable Gland & Stopping Plug, External Reflector, Mounting Hardware.
|
 |
PEW/WG/006 Ex-d/WP Well Glass 200W GLS/80, 125W HPMV/70W MH/160W MLL / 2X23W CFL Lamp Non Integral.
|
|
|
PEW/WG/026 Ex-d/WP Well Glass 80, 125W HPMV, 70W MH Integral Lamp, 250W HPMV, 150W MH Lamp Non Integral.
|
|
|
PEW/WG/026 Ex-d/WP Well Glass 250W HPMV, 150W MH Lamp Integral.
|
|
|
PEW/WG/Ex-e/026 Ex-e/WP Well Glass 200W GLS/80, 125W HPMV/70W MH/160W MLL / 70W HPSV Lamp Non Integral.
|
|
|
PEW/WG/Ex-e/006 Ex-e/WP Well Glass 80, 125W HPMV/70W MH/70W HPSV Lamp Integral or 250W HPMV/150W MH/150W HPSV Lamp Non Integral.
|
|
|
|

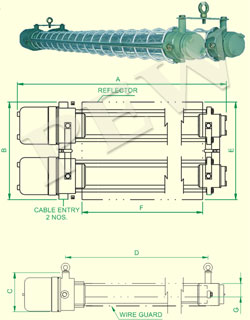

PEW/FTL/016 Ex-d/WP Tube Light 1 or 2 X 20/40W FTL, 1 or 2 X 36W PLL Lamp. |
|
|
PEW/WG/Ex-e/006 Ex-e/WP Well Glass 250W HPMV/150W MH/150W HPSV Lamp Integral.
|
|
|
PEW/BH/038 Ex-d/WP Bulk Head 200W GLS/80, 125W HPMV/70W MH/160W MLL / 2X23W CFL Lamp Non Integral, 2X26W PLL Lamp Integral.
|
|
|
|
