Flame

FLP/WP JUNCTION BOXES

  • Type of Protection: Flameproof (Explosion proof) Ex-d or Increased Safety Ex-e,
  • Area Classification: Zone 1 & 2 or Zone 2,
  • Gas Groups: I, IIA, IIB and IIC (Please refer detailed product specification),
  • IP Protection: Minimum IP 55 or IP 65/66,
  • Apparatus standard: For Ex-d - IS 2148/1981 and Ex-e IS 6381/1972 & IS 8224/1976 (Recertification based on IEC 60079 series is under process),
  • Material: Cast Aluminium Alloy LM-6,
  • Finish: Corrosion Resistant Epoxy paint Shade 631 of IS 5,
  • Gasket: Endless Neoprene minimum 3 mm dia.
  • Hardware: All flame path - SS Allen Bolt or Threaded. All other SS,
  • Mounting:Wall / Structure mounting arrangement using Bolt of minimum M8
  • Rating: As per Customer Specification various type of terminals like Clip on Strip Type, Busbar, Ex-i or Ex-e Terminals of minimum 2.5 Sq. mm 230V 50 Hz AC,
  • Cable Entry Size / No :As per customer specification. Size and Type like NPT, BSP, BSCon, Metric PG on LEFT / RIGHT / BOTTAM & TOP side of junction Box,
  • Earthing: External 2 Nos. of size M6 & Internal 1 No. of size M6,
  • Accessories: (OPTIONAL) Cable Gland & Stopping Plug, Mounting Hardware.
Junction-Boxes
PEW/JB/009 Ex-d/WP Size Dia 90 x 55 mm Internal.
Junction Boxes
PEW/JB/034 Ex-d/WP Size Dia 110 x 55 mm Internal.
Junction Boxes
PEW/JB/034 Ex-d/WP Size Dia 110 x 55 mm Internal.
Junction Boxes
PEW/JB/025 Ex-d/WP Size 150 x 150 x 140 mm External.
Junction Boxes
PEW/JB/012 Ex-d/WP Size 250 x 250 x 140 mm External.
Junction-Boxes
PEW/Jb/011 Ex-d/WP Size 350 x 350 x 140 mm External.
Junction Boxes
PEW/CP/035 Ex-d/WP Size 425 x 425 x 230 mm Internal.
Junction Boxes
PEW/CP/035 Ex-d/WP Size 625 x 225 x 230 / 330 mm Internal.
Junction Boxes
PEW/CP/035 Ex-d/WP Size 225 x 425 x 230 mm Internal.
;
Junction Boxes
PEW/JB/WP/002 WP Size 265 x 200 x 100 mm Internal.
JUnction Boxes
PEW/JB/WP/005 WP Size 350 x 200 x 110 mm External.
Junction Boxes

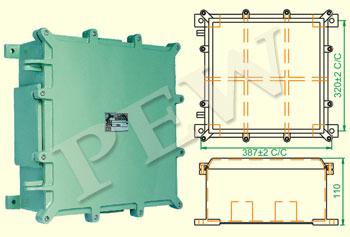

PEW/JB/WP/004 WP Size 350 x 350 x 110 mm External.
Junction Boxes
PEW/JB/Ex-e/001 Ex-e/WP Size 525 x 325 x 200 mm Internal.
